The Power of Clean

The Armadillo series provides heavy-duty sweeping in a variety of sizes. Its claims to fame are its thorough dust filtration, durable steel frame, large and convenient debris hopper, and powerful climbing ability and ground clearance.

THE POWERBOSS ADVANTAGE:

  • Air-Moving System
    • Dual-phase dust filtration
    • Built-in pre-filtering & ultra-fine screen panel filters for dust control
    • Aggressive electric filter shakers
    • Shock-mounted hydraulic impeller
    • Engine area shielded from exhaust air
    • MERV 17 HEPA filter option for silica dust control (Read More)

  • Debris-Handling System
    • Direct throw sweeping method
    • Oversized hopper with RTR™ (Rotary Trash Relocation) (Hopper can be tilted to shift debris away from opening)
    • Quick-change brooms
    • Dual-speed sweeping

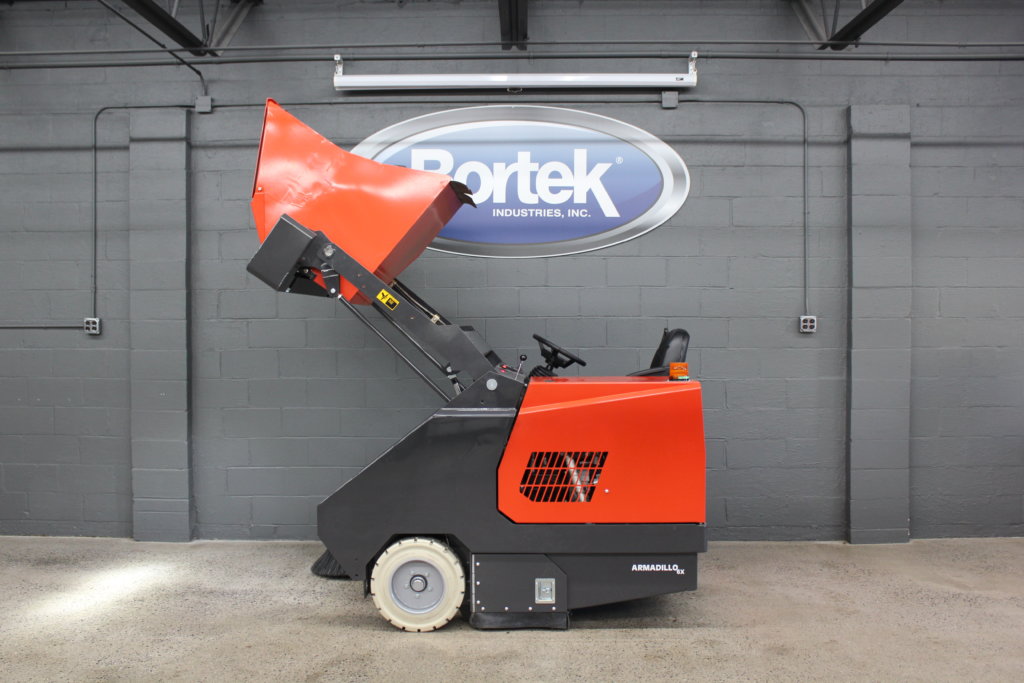

    • Multi-level high dump

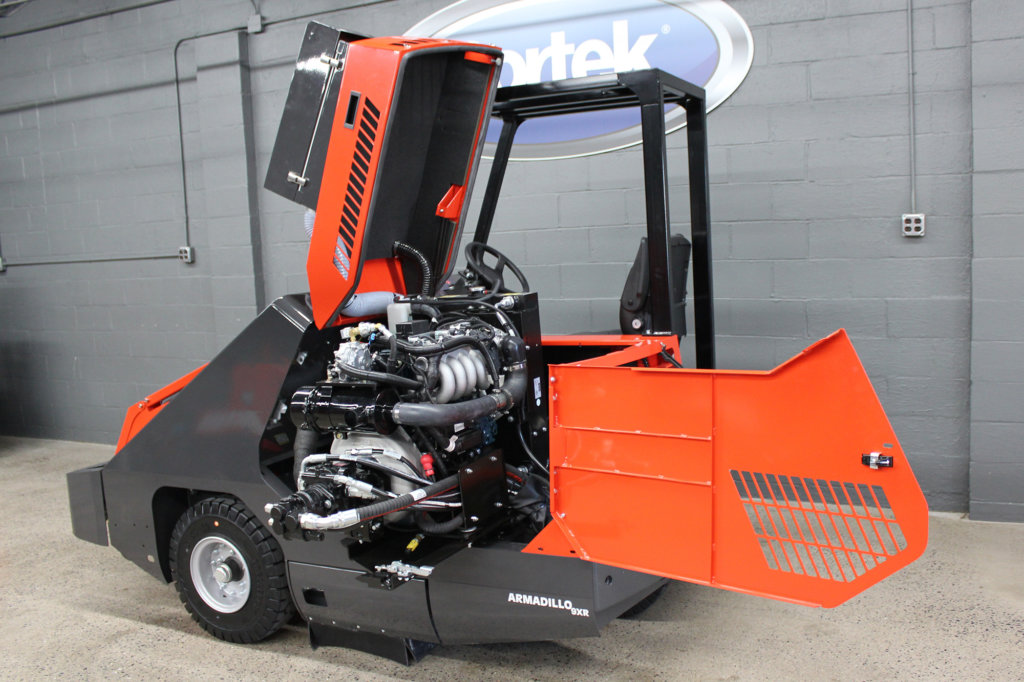

  • PowerSwing™
    • A patented system which allows for the engine to be rotated out of the body of the sweeper for bench-like maintenance access to all parts. Available as an option on the 9XR.

  • PowerClimb™
    • Oversized tires and high ground clearance allow the Armadillo to pass over rough terrain, speed bumps, and even climb sidewalk curbs.

  • PowerFlex™
    • Automotive-type rear wheel suspension minimizes vibration for operator comfort and longer machine life. Standard on the 10XV, optional on the 9XV.

SWEEP PATH

6X: 53″
9X: 62″
10X: 72″/84″

HOPPER VOLUME

6X: 10 ft3
9X: 22 ft3
10X: 30 ft3

HOPPER LOAD CAPACITY

6X: 650 lbs.
9X: 1500 lbs.
10X: 2000 lbs.

HIGH DUMP

6X: 60″
9X: 60″
10X: 64″

DIMENSIONS

6X: 79″ x 53″ x 53″
9X: 105″ x 60″ x 55.38″
10X: 105.88″ x 68″ x 55.38″

WEIGHT

6X: 2550 lbs.
9X: 3500 lbs.
10X: 4575 lbs.

Ask about a free demo at your facility!

POWERFUL OPTIONS

PowerBoss 9XR PowerSwing Engine Access

HIGH DUMPING

DUST FILTRATION

More Details
6X | 9X | 10X
