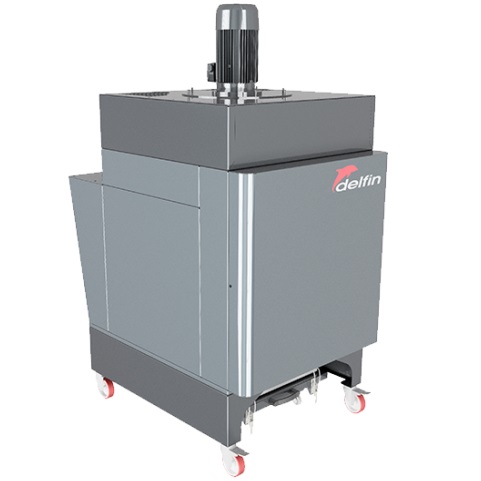

Delfin Zefiro CUBE 20 Industrial Vacuum

Portable Dust Collector Three Phase | The Zefiro CUBE 20 is an industrial dust collector with high air flow rate for localized suction (thanks to one or two optional articulated arms), or directly on the machine for fine dust.

Request Info Request Demo

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

The electric fan is capable of generating high air flow values. The large filter cartridges ensure the total filtration of the extracted dust, which is constantly cleaned by an automatic differential pressure cleaning system. A convenient container to release allows to simply dispose of the powders collected. The Cube 20 is an Industrial Dust Collector for Recovery and Filtration of Light and Fine Suspended Particles of Dust.

SPECIFICATIONS

DELFIN ZEFIRO CUBE 20 INDUSTRIAL VACUUM AT A GLANCE

  • System Voltage:

    230 V

  • Power:

    2.0 hp

  • Max Airflow:

    794.6 CFM

  • Max Water Lift:

    5.6 inH2O

  • Electrical Protection:

    IP Class 55

  • Vac Capacity:

    7.9 Gallons

  • Dimensions:

    32" x 45" x 67"

  • Weight:

    518 lbs

  • Sound Level:

    74 dBA

  • Suction Inlet:

    6"

    • DELFIN ZEFIRO CUBE 20 BENEFITS

    TO MAKE YOUR LIFE EASIER

    • Compact and portable
    • Electric fan for high airflow
    • Ideal for 24/7 production cycles
    • Powder coated steel construction
    • Large filter surface
    • Geometric cube design for maximum stability
    • Door to access collection tank
    • Optional 1 or 2 adjustable arms for localized suction
    • Pneumatic reverse pulse cleaning system

    DOCUMENTS

    FOR THE DELFIN ZEFIRO CUBE 20 INDUSTRIAL VACUUM
