FEATURES & HIGHLIGHTS
FOCUSED ON WHAT MATTERS
The installation on PVC and aluminium assembly lines ( materials which produce very thin chips and dust particles) guarantees to use EV AP 560 PN 3HP as a chips collector, in order to reduce downtime. An electric fan allows to reach high air flow levels and a constant top vacuum performance. An automatic reverse pulse system cleans the filter cartridges to maximize performance and avoid breaks in productivity. Antistatic polyester filter and a 26 gal. (100 L) collection capacity make this dust collector the must-have for daily vacuuming of dust particles suspended in the working environment or when removing large quantities of light chips. The machine can be either supplied with a suction arm installed on it or added directly onto the assembly line. ATEX certified version is also available (Z22 Model).
CHIPS COLLECTOR IDEAL FOR ALUMINIUM OR PVC MITER SAWS
One of the main applications of this industrial chips collector is the collection of aluminium or PVC dust particles on miter saws with single or double head, as well as on CNC machines. The EV AP 560 PN 3HP can recover significant quantities of waste and chips from the source, and reduce machine maintenance and workplace cleaning time.
SPECIFICATIONS

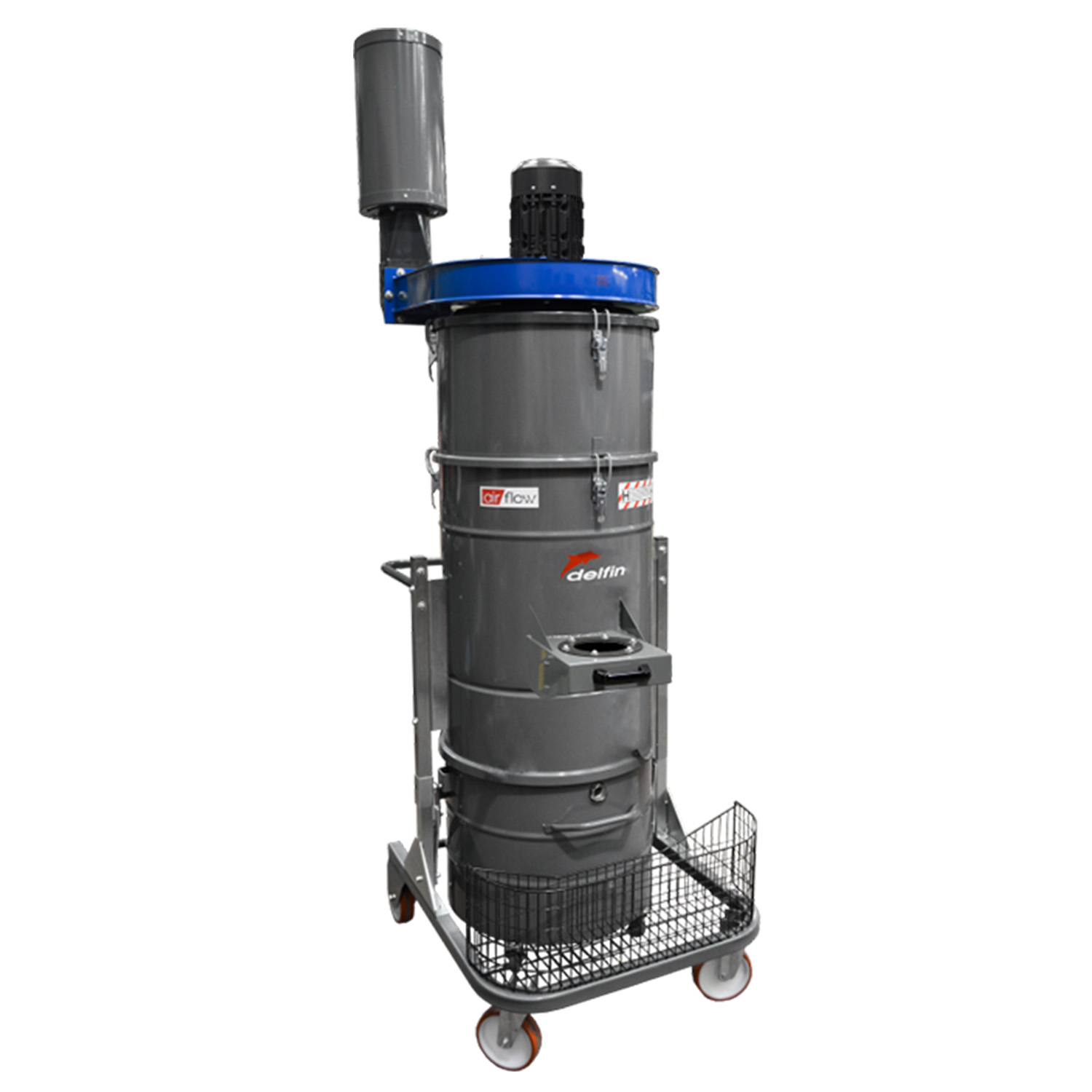

DELFIN ZEFIRO EV AP 560 PN 3HP INDUSTRIAL VACUUM AT A GLANCE
230 V
3.5 hp
765.2 CFM
14.2 inH2O
IP Class 55
26 Gallons
33" x 31" x 98"
276 lbs
72 dBA
6"
DELFIN ZEFIRO EV AP 560 PN 3HP BENEFITS
TO MAKE YOUR LIFE EASIER
- Compact and portable
- Electric fan for high airflow
- Ideal for 24/7 production cycles
- Powder coated steel construction
- Large filter surface
- Accessory basket
- Removable collection tank
- Pneumatic reverse pulse cleaning system
- Optional arm for localized suction
DOCUMENTS
FOR THE DELFIN ZEFIRO EV AP 560 PN 3HP INDUSTRIAL VACUUM
- Delfin Family Brochure 5.7 MB
Brochure
- Delfin Zefiro EV AP 560 PN Technical Specs 594.2 KB
