3D-12 Air-Tow Trailer

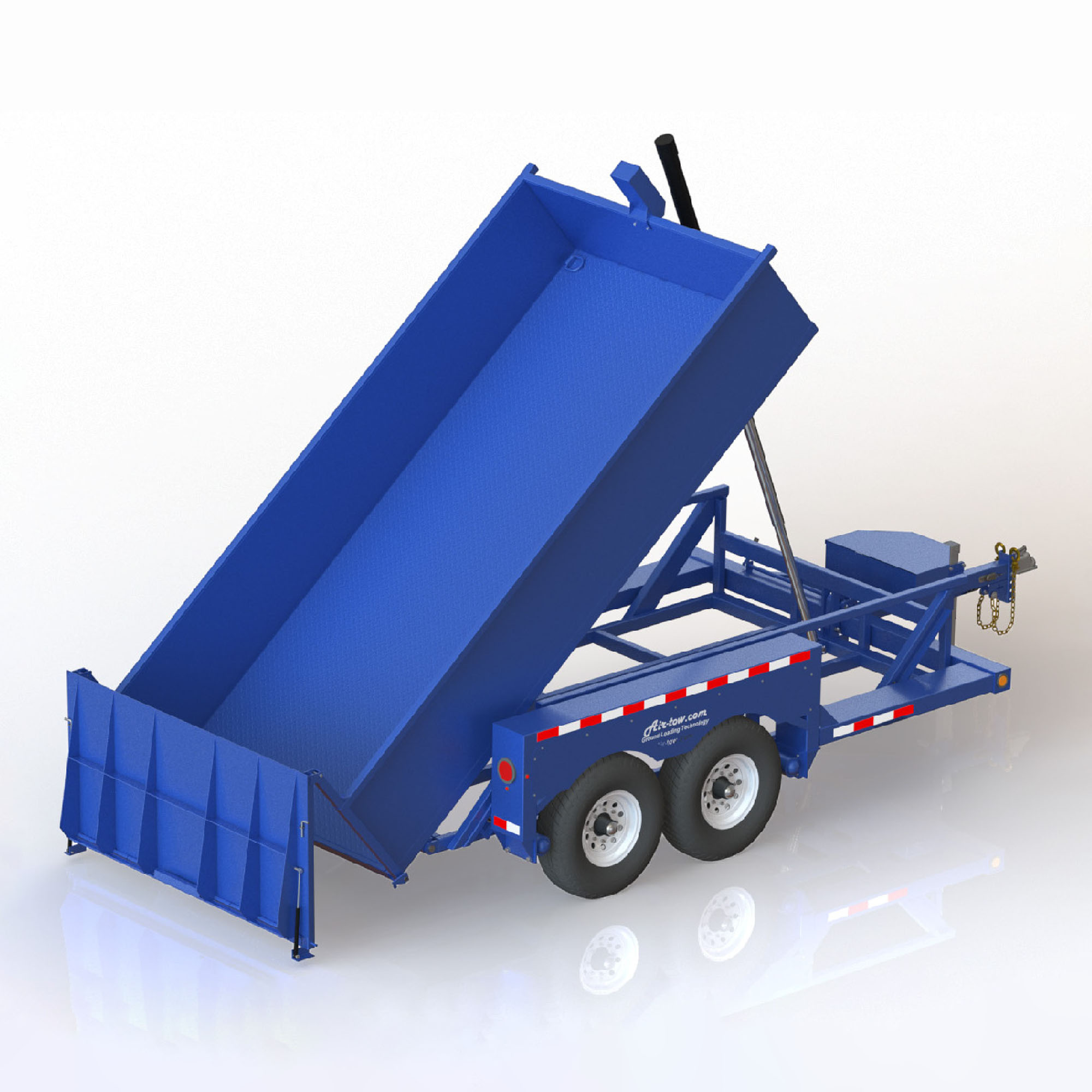

Air-Tow 3D-12 Drop-Deck/Dump Trailer

Offers the flexibility of being both a drop-deck and dump trailer all in one. 149″ internal deck length and 74″ deck width with a 10,000 lb equipment capacity (8,000 dump capacity).

Request Info

FEATURES & HIGHLIGHTS

FOCUSED ON WHAT MATTERS

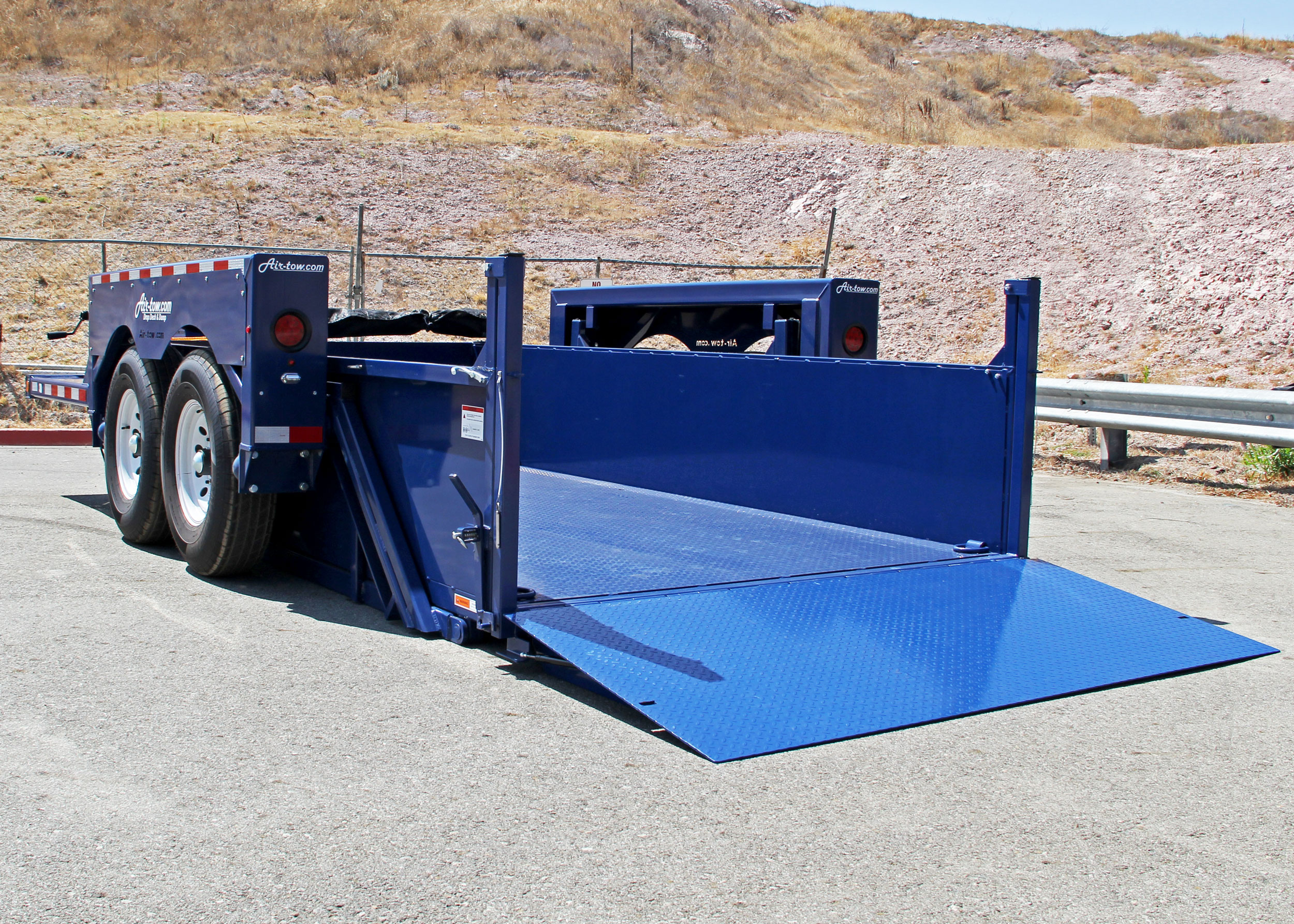

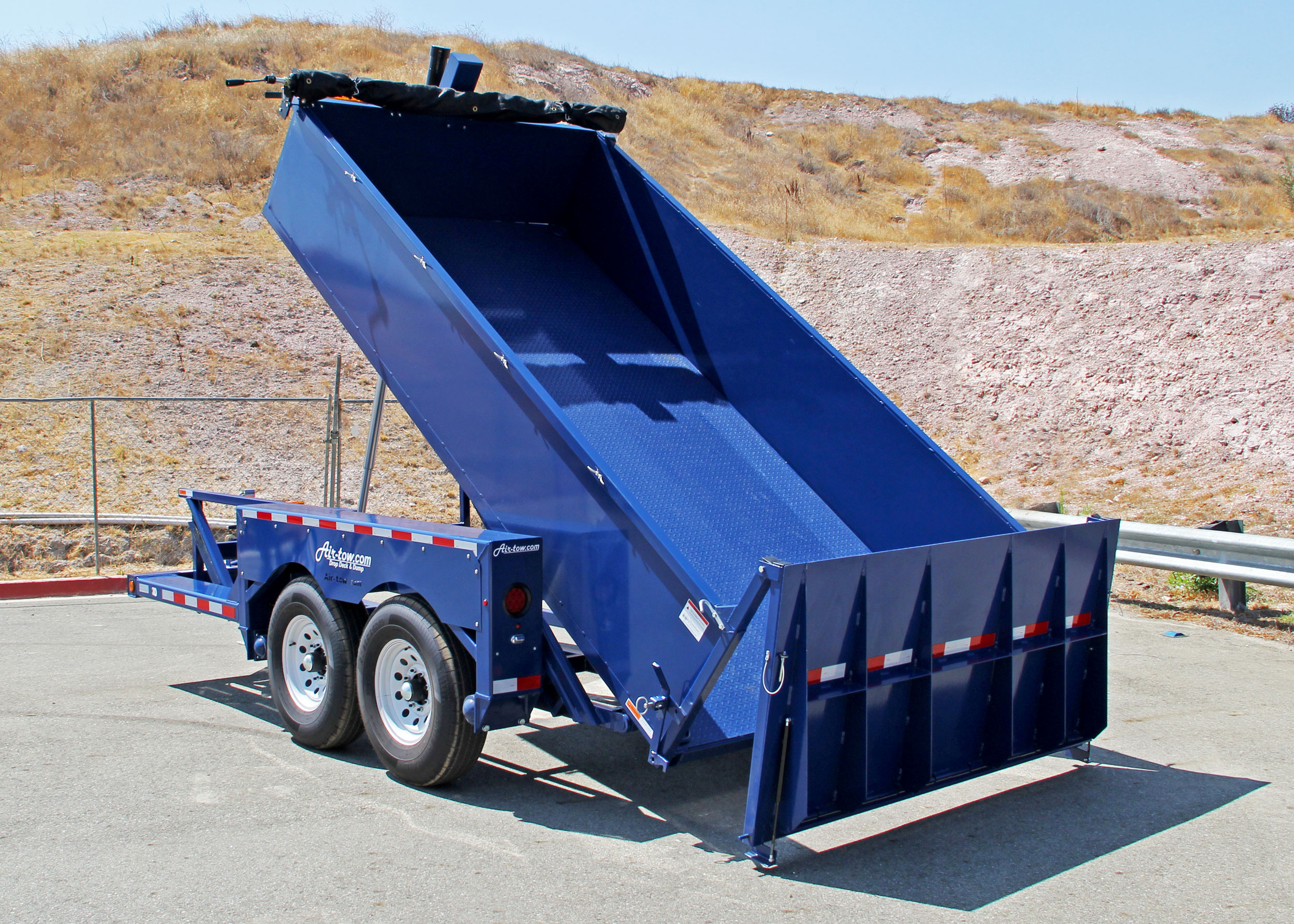

The Multi-Purpose, Two-In-One Drop-Deck & Dump Trailer- The widely popular 3D (Drop-Deck & Dump) model is the world’s only trailer of its kind – offering the dual-purpose flexibility of being both a drop-deck and dump trailer all in one heavy-duty vehicle. With a full 149″ internal deck length and 74″ deck width combined with a 10,000 lb equipment capacity (8,000 dump capacity), you can fit most any piece of equipment to handle just about every job, large or small. The Airtow 3D takes up half the yard space with none of the maintenance issues of two, other equipment and dump trailer combinations. The “3D Series – Drop-Deck & Dump” trailer is everything you loved about the ground-level loading, Airtow Trailer but with the added benefit of a full, dump feature. It’s the only work trailer you’ll need because it will handle every part of your job!

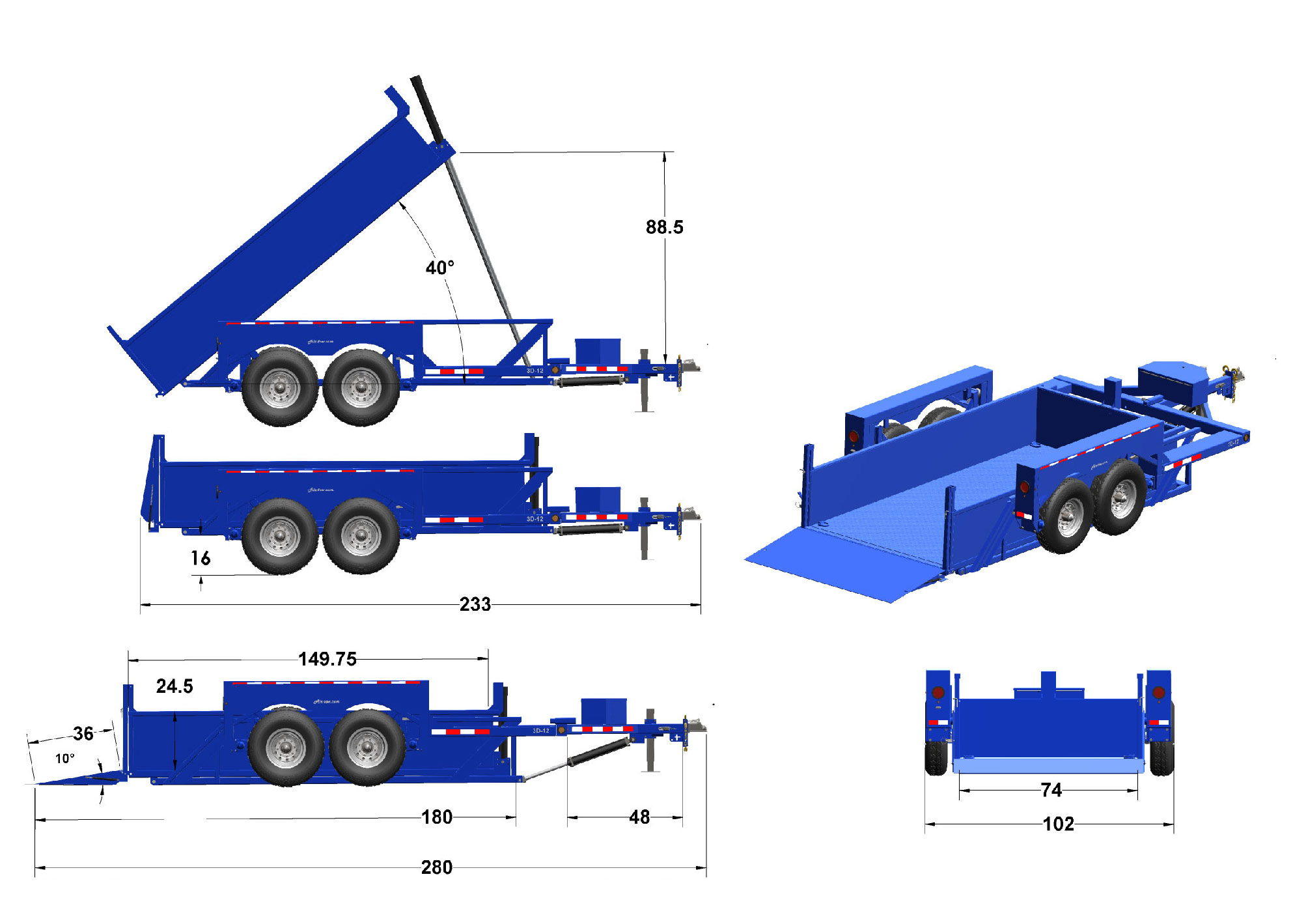

SPECIFICATIONS

AIR-TOW 3D-12 DROP-DECK/DUMP TRAILER AT A GLANCE

  • Weight: 4770 lbs
  • Dimensions: 101 in
  • Axles:

  • Bed Depth (Inside):

    24"

  • Bed Length (Inside):

    12'5" (149")

  • Bed Width (Inside):

    6'2" (74")

  • Brakes (electric-std.):

    Dual Electric

  • Capacity:

  • Coupler:

  • Deck Material:

  • Full Dump Angle:

    45 degrees

  • GVWR:

    9,995-14,770 lbs.

  • Lift Mechanism:

  • Suspension:

  • Tailgate Ramp:

    Dual Acting

  • Wheels/Tires:

    16" – 12 Ply

  • Manufacturer:

    • AIR-TOW 3D-12 BENEFITS

    TO MAKE YOUR LIFE EASIER

    • 4 Heavy-Duty D-Rings
    • Adjustable Chain
    • Adjustable Coupler
    • Anti-Theft Switch
    • Bright LED Lights
    • Durable Powder Coat Paint
    • Extra-Wide Deck
    • Fenderless
    • Ground-Level Loading
    • Heavy-Duty Diamond Deck
    • Remote Control
    • Rubber Suspension
    • Swing-Arm Axles

    DOCUMENTS

    FOR THE AIR-TOW 3D-12 DROP-DECK/DUMP TRAILER


    Additional information

    Weight 4770 lbs
    Dimensions 101 in
    Axles

    Bed Depth (Inside)

    24"
    Bed Length (Inside)

    12'5" (149")
    Bed Width (Inside)

    6'2" (74")
    Brakes (electric-std.)

    Dual Electric
    Capacity

    Coupler

    Deck Material

    Full Dump Angle

    45 degrees
    GVWR

    9,995-14,770 lbs.
    Lift Mechanism

    Suspension

    Tailgate Ramp

    Dual Acting
    Wheels/Tires

    16" – 12 Ply
    Manufacturer

    Title Type Size
    Air-Tow 2024 Full-Line Catalog application/pdf 6 MB
